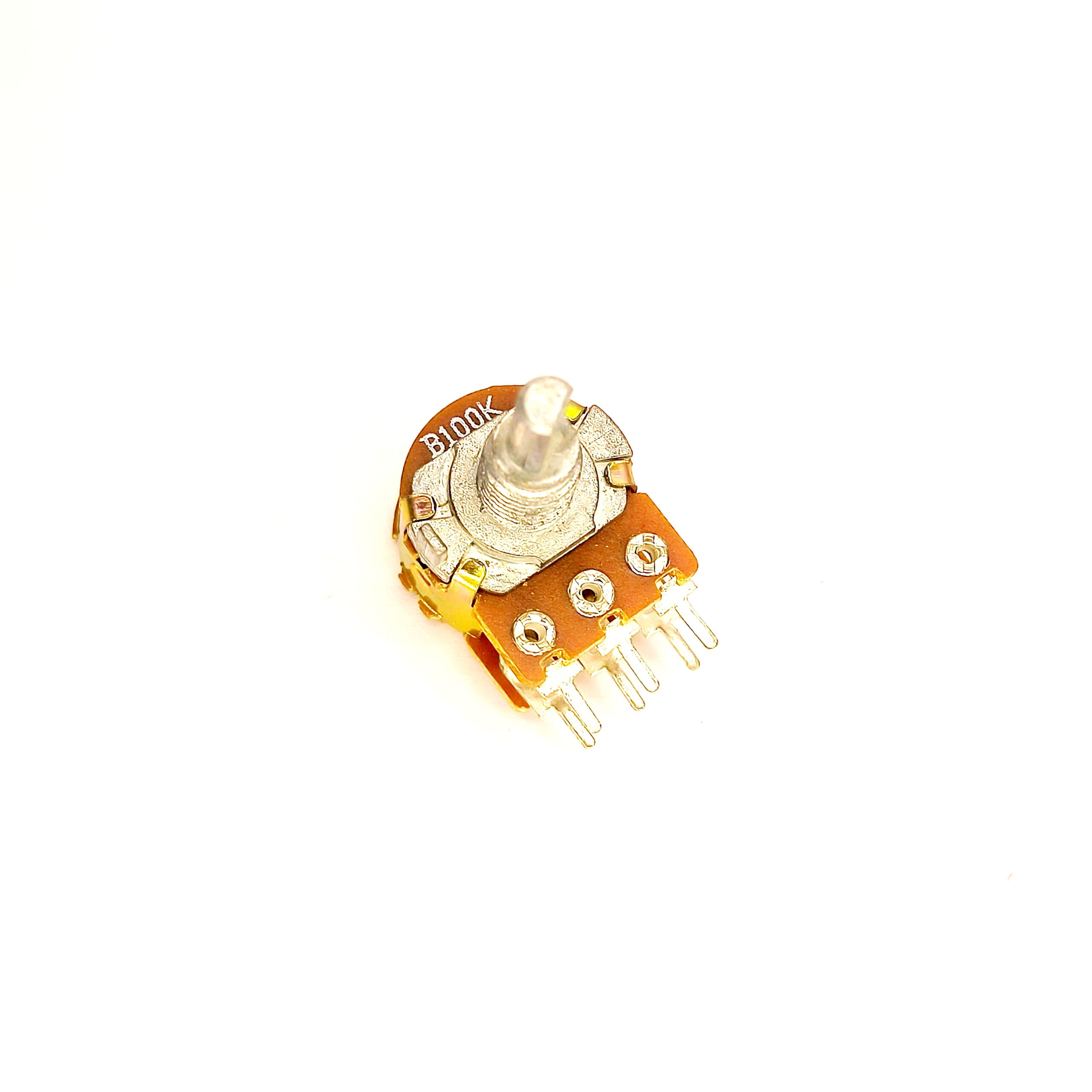

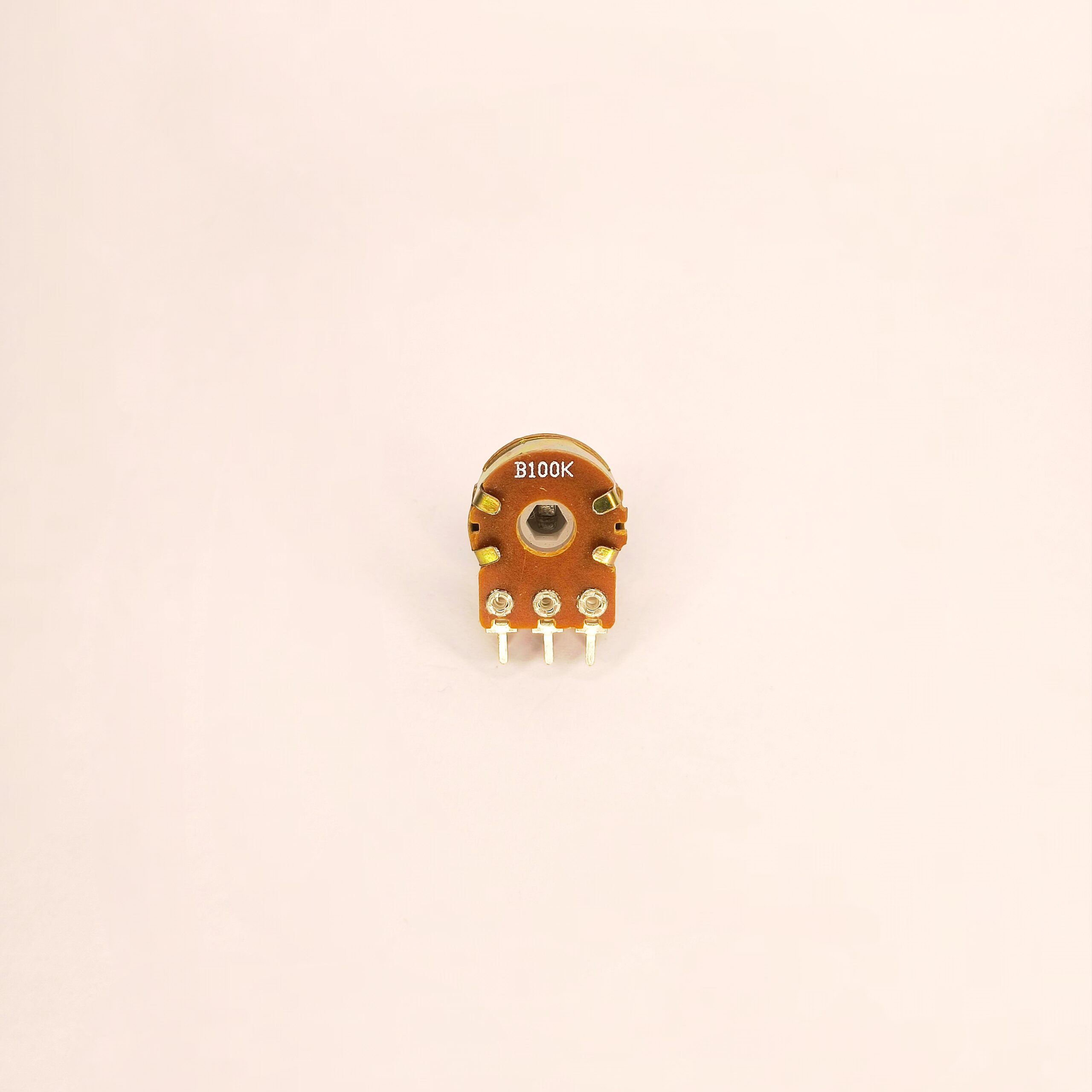

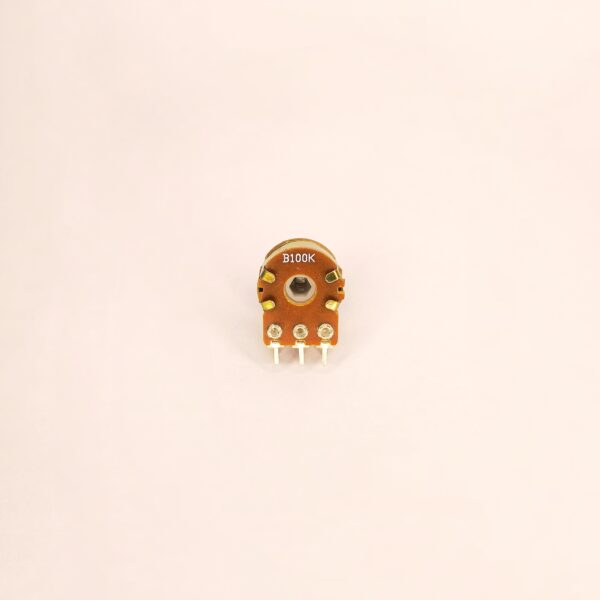

100kΩ 0.2W 6 Pin 2 Gang Rotary Carbon Potentiometer (15mm) by ekastore

Description

⚡ 100kΩ 0.2W 6 Pin 2 Gang Rotary Carbon Potentiometer (15mm)
The 100kΩ 0.2W 6 Pin 2 Gang Rotary Carbon Potentiometer is a versatile and reliable adjustable resistor used in electronic circuits to vary voltage or current, commonly used for volume control, tuning, and other applications requiring variable resistance. Its 2-gang design allows for controlling two separate channels with a single rotation, making it ideal for stereo audio systems and dual control applications.

🔹 Key Features:

• 100kΩ Resistance: The resistance value of 100kΩ offers a broad range of adjustment, suitable for many low to medium-power applications.

• 0.2W Power Rating: With a 0.2W power rating, it is suitable for circuits that do not require high power dissipation, typically found in signal-level electronics.

• 6 Pin Design: Features six pins for connections, which typically include common (wiper), and two separate contacts for each gang, allowing for independent control over two different signals or channels.

• 2 Gang: Dual control function, allowing simultaneous control of two separate circuits or channels with a single knob—ideal for stereo volume or balance control.

• Carbon Composition: Made with carbon-based resistive material, offering a reliable and cost-effective solution for applications requiring precision and smooth operation.

• Compact Size: The 15mm body size allows it to fit easily into small spaces and circuits, making it ideal for tight or portable designs.

🔹 Specifications:

• Resistance: 100kΩ

• Power Rating: 0.2W

• Number of Pins: 6 (two for each gang, plus wiper and common)

• Gang Configuration: 2 Gang (dual control)

• Body Size: 15mm

• Mounting Type: Typically PCB mount with solder terminals

• Material: Carbon

• Type: Rotary (adjustable by turning the knob)

🔹 Applications:

• Audio Equipment: Perfect for volume, tone, or balance controls in stereo audio systems.

• Signal Adjustment: Used for adjusting signal levels in various electronics, such as oscillators or tuning circuits.

• DIY Electronics: Ideal for hobbyists and custom-built projects where variable resistance is needed.

• Control Circuits: Used in control panels or devices that require manual adjustment of electrical parameters.

The 100kΩ 0.2W 6 Pin 2 Gang Rotary Carbon Potentiometer provides a reliable and precise solution for controlling electrical signals in a wide range of applications, offering excellent versatility in a compact form.
